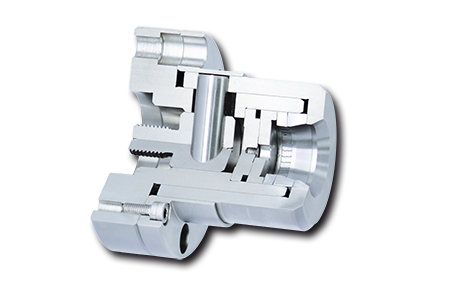

Scheibenblock-Flanschfutter LAFF
-
-
Scheibenblock-Flanschfutter
als Komplett-SpannzeugEigenschaften
- Für Spanndurchmesser von 7 mm bis 80 mm
- Hohe Rundlaufgenauigkeit ≤ 0,01 mm
- Zulässige Werkstücktoleranz bis IT11
- Kurze oder lange Spannlänge möglich
- Plananzug gegen Schulterring
- Für dünnwandige oder massive Werkstücke
- Unempfindlich gegen Verschmutzung durch gummierte Schlitzung des Scheibenblocks
Webshop:
| Bezeichnung | Materialnummer |
Gewicht [kg] |
Dmax [mm] |
Lb [mm] | Lieferzeit* |
Für Kunden in Deutschland Preis/Stück in € bei Abnahme ab |
|
|---|---|---|---|---|---|---|---|
| LAFF 22 | 4111-022911-007.00 | 1,9 | (min. 7) (max. 10) | 4 |
| ||
| LAFF 22 | 4111-022921-007.00 | 2,0 | (min. 7) (max. 10) | 6 |
| ||
| LAFF 22 | 4111-022931-007.00 | 2,1 | (min. 7) (max. 10) | 8 |
| ||
| LAFF 22 | 4111-022912-010.00 | 1,9 | (min. 10) (max. 15) | 4 |
| ||
| LAFF 22 | 4111-022922-010.00 | 2,0 | (min. 10) (max. 15) | 6 |
| ||
| LAFF 22 | 4111-022932-010.00 | 2,1 | (min. 10) (max. 15) | 8 |
| ||
| LAFF 32 | 4111-032911-010.00 | 2,0 | (min. 10) (max. 15) | 6 |
| ||
| LAFF 32 | 4111-032921-010.00 | 2,1 | (min. 10) (max. 15) | 9 |
| ||
| LAFF 32 | 4111-032931-010.00 | 2,2 | (min. 10) (max. 15) | 12 |
| ||
| LAFF 32 | 4111-032912-015.00 | 2,0 | (min. 15) (max. 20) | 6 |
| ||
| LAFF 32 | 4111-032922-015.00 | 2,1 | (min. 15) (max. 20) | 9 |
| ||
| LAFF 32 | 4111-032932-015.00 | 2,2 | (min. 15) (max. 20) | 12 |
| ||
| LAFF 42 | 4111-042911-020.00 | 3,0 | (min. 20) (max. 25) | 6 |
| ||
| LAFF 42 | 4111-042921-020.00 | 3,1 | (min. 20) (max. 25) | 9 |
| ||
| LAFF 42 | 4111-042931-020.00 | 3,2 | (min. 20) (max. 25) | 12 |
| ||
| LAFF 42 | 4111-042912-025.00 | 3,0 | (min. 25) (max. 30) | 6 |
| ||
| LAFF 42 | 4111-042922-025.00 | 3,1 | (min. 25) (max. 30) | 9 |
| ||
| LAFF 42 | 4111-042932-025.00 | 3,2 | (min. 25) (max. 30) | 12 |
| ||
| LAFF 52 | 4111-052911-030.00 | 5,0 | (min. 30) (max. 35) | 6 |
| ||
| LAFF 52 | 4111-052921-030.00 | 5,1 | (min. 30) (max. 35) | 9 |
| ||
| LAFF 52 | 4111-052931-030.00 | 5,2 | (min. 30) (max. 35) | 12 |
| ||
| LAFF 52 | 4111-052912-035.00 | 5,0 | (min. 35) (max. 40) | 6 |
| ||
| LAFF 52 | 4111-052922-035.00 | 5,1 | (min. 35) (max. 40) | 9 |
| ||
| LAFF 52 | 4111-052932-035.00 | 5,2 | (min. 35) (max. 40) | 12 |
| ||
| LAFF 62 | 4111-062911-040.00 | 6,3 | (min. 40) (max. 45) | 6 |
| ||
| LAFF 62 | 4111-062921-040.00 | 6,3 | (min. 40) (max. 45) | 9 |
| ||
| LAFF 62 | 4111-062931-040.00 | 6,5 | (min. 40) (max. 45) | 12 |
| ||
| LAFF 62 | 4111-062912-045.00 | 6,3 | (min. 45) (max. 50) | 6 |
| ||
| LAFF 62 | 4111-062922-045.00 | 6,4 | (min. 45) (max. 50) | 9 |
| ||
| LAFF 62 | 4111-062932-045.00 | 6,5 | (min. 45) (max. 50) | 12 |
| ||
| LAFF 80 | 4111-080911-050.00 | 11,0 | (min. 50) (max. 55) | 6 |
| ||
| LAFF 80 | 4111-080921-050.00 | 11,2 | (min. 50) (max. 55) | 10 |
| ||
| LAFF 80 | 4111-080931-050.00 | 11,4 | (min. 50) (max. 55) | 16 |
| ||
| LAFF 80 | 4111-080912-055.00 | 11,0 | (min. 55) (max. 60) | 6 |
| ||
| LAFF 80 | 4111-080922-055.00 | 11,2 | (min. 55) (max. 60) | 10 |
| ||
| LAFF 80 | 4111-080932-055.00 | 11,4 | (min. 55) (max. 60) | 16 |
| ||
| LAFF 90 | 4111-090911-060.00 | 12,5 | (min. 60) (max. 65) | 6 |
| ||
| LAFF 90 | 4111-090921-060.00 | 12,7 | (min. 60) (max. 65) | 10 |
| ||
| LAFF 90 | 4111-090931-060.00 | 12,9 | (min. 60) (max. 65) | 16 |
| ||
| LAFF 90 | 4111-090912-065.00 | 12,5 | (min. 65) (max. 70) | 6 |
| ||
| LAFF 90 | 4111-090922-065.00 | 12,7 | (min. 65) (max. 70) | 10 |
| ||
| LAFF 90 | 4111-090932-065.00 | 12,9 | (min. 65) (max. 70) | 16 |
| ||
| LAFF 100 | 4111-100911-070.00 | 17,0 | (min. 70) (max. 75) | 6 |
| ||
| LAFF 100 | 4111-100921-070.00 | 17,3 | (min. 70) (max. 75) | 10 |
| ||
| LAFF 100 | 4111-100931-070.00 | 17,6 | (min. 70) (max. 75) | 16 |
| ||
| LAFF 100 | 4111-100912-075.00 | 17,0 | (min. 75) (max. 80) | 6 |
| ||
| LAFF 100 | 4111-100922-075.00 | 17,3 | (min. 75) (max. 80) | 10 |
| ||
| LAFF 100 | 4111-100932-075.00 | 17,6 | (min. 75) (max. 80) | 16 |
|
| * Lieferzeiten abgehend ab Werk in Werktagen |
