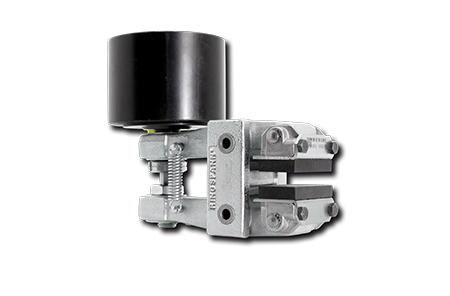

DH 025 PFM
-
-
pneumatically activated – spring released
Features Code Brake Caliper D Mounting to the machine at right angles to the brake disc H Frame size 025 025 Pneumatically activated P Spring released F Manual adjustment to accommodate friction block wear M Pressure piston 635 or 655 are available for selection 635
655
Thruster mounted right or left available R
L
Thickness of brake disc 12,5 mm or 25 mm 12
25
-
Contact
Sales Hotline:
+49 6028 40642 0
info@ringspann-sts.deTechnical Hotline:
+49 6028 40642 0
info@ringspann-sts.de -
Tools
Webshop:
| Product name | Article number | Weight | Delivery time* |
For customers in Germany Price/piece in € for orders of at least |
|
|---|---|---|---|---|---|
| DH 025 PFM-635 R-12 | 4457-250100-000000 | 7,1 |
| ||
| DH 025 PFM-635 R-25 | 4457-250102-000000 | 7,1 |
| ||
| DH 025 PFM-655 R-12 | 4457-250108-000000 | 10,3 |
| ||
| DH 025 PFM-655 R-25 | 4457-250110-000000 | 10,3 |
| ||
| DH 025 PFM-635 L-12 | 4457-250101-000000 | 7,1 |
| ||
| DH 025 PFM-635 L-25 | 4457-250103-000000 | 7,1 |
| ||
| DH 025 PFM-655 L-12 | 4457-250109-000000 | 10,3 |
| ||
| DH 025 PFM-655 L-25 | 4457-250111-000000 | 10,3 |
|
| * Delivery times ex works in business days |
