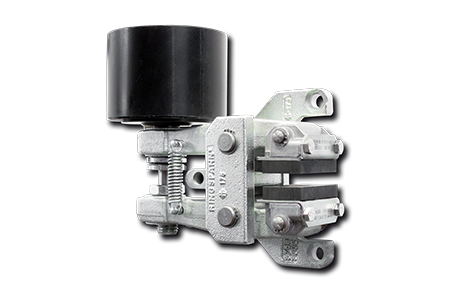

DH 030 PFM
-
-
pneumatically activated – spring released
Features Code Brake Caliper D Mounting to the machine at right angles to the brake disc H Frame size 030 030 Pneumatically activated P Spring released F Manual adjustment to accommodate friction block wear M Pressure piston 635 or 655 are available for selection 635
655
Thruster mounted right or left available R
L
Thickness of brake disc 12,5 mm or 25 mm 12
25
Webshop:
| Product name | Article number |
Weight [kg] | Delivery time* |
For customers in Germany Price/piece in € for orders of at least |
|
|---|---|---|---|---|---|
| DH 030 PFM-635 R-12 | 4457-300128-000000 | 7,7 |
| ||
| DH 030 PFM-635 R-25 | 4457-300130-000000 | 7,7 |
| ||
| DH 030 PFM-655 R-12 | 4457-300122-000000 | 10,9 |
| ||
| DH 030 PFM-655 R-25 | 4457-300126-000000 | 10,9 |
| ||
| DH 030 PFM-635 L-12 | 4457-300129-000000 | 7,7 |
| ||
| DH 030 PFM-635 L-25 | 4457-300131-000000 | 7,7 |
| ||
| DH 030 PFM-655 L-12 | 4457-300125-000000 | 10,9 |
| ||
| DH 030 PFM-655 L-25 | 4457-300127-000000 | 10,9 |
|
| * Delivery times ex works in business days |
