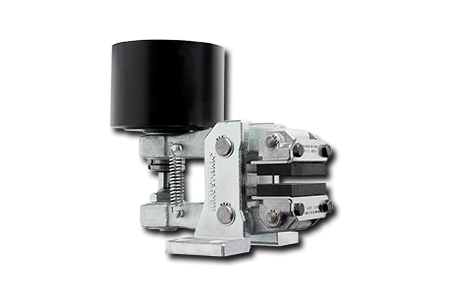

DV 030 FPM
-
-
spring activated – pneumatically released
Features Code Brake Caliper D Mounting to the machine parallel to the brake disc V Frame size 030 030 Spring activated F Pneumatically released P Manual adjustment to accommodate friction block wear M Pressure piston 025, 035, 045 or 101 are available for selection 025
to
101Thruster mounted right or left available R
L
Thickness of brake disc 12,5 mm or 25 mm 12
25
Webshop:
| Product name | Article number |
Weight [kg] | Delivery time* |
For customers in Germany Price/piece in € for orders of at least |
|
|---|---|---|---|---|---|
| DV 030 FPM-025 R-12 | 4457-301684-000000 | 9,1 |
| ||
| DV 030 FPM-025 R-25 | 4457-301686-000000 | 9,1 |
| ||
| DV 030 FPM-035 R-12 | 4457-301688-000000 | 11,2 |
| ||
| DV 030 FPM-035 R-25 | 4457-301690-000000 | 11,2 |
| ||
| DV 030 FPM-045 R-12 | 4457-301677-000000 | 11,2 |
| ||
| DV 030 FPM-045 R-25 | 4457-301679-000000 | 11,2 |
| ||
| DV 030 FPM-101 R-12 | 4457-301692-000000 | 12,4 |
| ||
| DV 030 FPM-101 R-25 | 4457-301694-000000 | 12,4 |
| ||
| DV 030 FPM-025 L-12 | 4457-301683-000000 | 9,1 |
| ||
| DV 030 FPM-025 L-25 | 4457-301685-000000 | 9,1 |
| ||
| DV 030 FPM-035 L-12 | 4457-301687-000000 | 11,2 |
| ||
| DV 030 FPM-035 L-25 | 4457-301689-000000 | 11,2 |
| ||
| DV 030 FPM-045 L-12 | 4457-301678-000000 | 11,2 |
| ||
| DV 030 FPM-045 L-25 | 4457-301680-000000 | 11,2 |
|
| * Delivery times ex works in business days |
