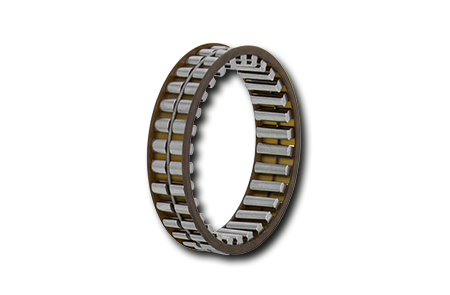

Cage Freewheels E
-
-
for assembly with inner and outer ring
with highest torque capacityPossible application as
- Backstop
- Overrunning Clutch
- Indexing Freewheel
FeaturesCage Freewheels E are sprag freewheels for installation between customer-supplied inner and outer rings. The sprags are made of hardened chrome steel and have an optimized geometry. Cages are made from plastic (PA).
Nominal torques up to 260 Nm.Advantages
- Highest torque capacity; more than three times higher torque capacity than drawn cup roller clutches
- Increased, customer-supplied component tolerances possible due to optimized sprag geometry
- Particularly suitable for space-optimized applications such as e-bike drives
- Customer-specific solutions can be implemented at short notice
Webshop:
| Product name | Article number | Delivery time* |
For customers in Germany Price/piece in € for orders of at least |
|
|---|---|---|---|---|
| E 14-11/16 | 3671-014001-000000 |
| ||
| E 24-11/24 | 3671-024001-000000 |
| ||
| E 25-6,3/26 | 3671-025001-000000 |
| ||
| E 25-11/26 | 3671-025002-000000 |
| ||
| E 30-6,3/30 | 3671-030003-000000 |
| ||
| E 30-11/20 | 3671-030002-000000 |
| ||
| E 30-11/26 | 3671-030001-000000 |
| ||
| E 32-11/30 | 3671-032003-000000 |
| ||
| E 34-11/33 | 3671-034001-000000 |
| ||
| E 35-11/28 | 3671-035001-000000 |
| ||
| E 40-11/30 | 3671-040001-000000 |
| ||
| E 45-6,3/42 | 3671-045002-000000 |
|
| * Delivery times ex works in business days |
