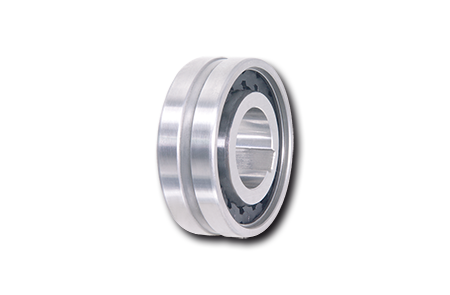

Internal Freewheels FDN
-
-
for press fit on the outer ring
with spragsApplication as
- Backstop
- Overrunning Clutch
- Indexing Freewheel
FeaturesInternal Freewheels FDN are sprag freewheels with anti-friction bearing dimensions.
The standard type does not have bearing support. In the case of the standard type, every second sprag has been replaced by a cylindrical roller; this freewheel can accept radial forces.
Nominal torques up to 2 400 Nm. The torque is transmitted on the outer ring by press fit.
Bores up to 80 mm. A multitude of standardized bore diameters are available with short delivery times.
Webshop:
| Product name | Article number |
Weight [kg] | Delivery time* |
For customers in Germany Price/piece in € for orders of at least |
|
|---|---|---|---|---|---|
| FDN 15 CFH | 4871-015100-008H10 | 0,1 |
| ||
| FDN 15 CFR | 4871-015102-008H10 | 0,1 |
| ||
| FDN 20 CFH | 4871-020100-012H18 | 0,1 |
| ||
| FDN 20 CFR | 4871-020102-012H18 | 0,1 |
| ||
| FDN 25 CFH | 4871-025100-015H23 | 0,1 |
| ||
| FDN 25 CFR | 4871-025102-015H23 | 0,1 |
| ||
| FDN 30 CFH | 4871-030100-020H16 | 0,2 |
| ||
| FDN 30 CFR | 4871-030102-020H16 | 0,2 |
| ||
| FDN 40 CFH | 4871-040100-025H33 | 0,2 |
| ||
| FDN 40 CFR | 4871-040102-025H33 | 0,2 |
| ||
| FDN 50 CFH | 4871-050100-035H33 | 0,4 |
| ||
| FDN 50 CFR | 4871-050102-035H33 | 0,4 |
| ||
| FDN 65 CFH | 4871-065100-050H21 | 0,7 |
| ||
| FDN 65 CFR | 4871-065102-050H21 | 0,7 |
| ||
| FDN 80 CFH | 4871-080100-060H44 | 1,2 |
| ||
| FDN 80 CFR | 4871-080102-060H44 | 1,2 |
| ||
| FDN 105 CFH | 4871-105100-075H49 | 3,2 |
| ||
| FDN 105 CFR | 4871-105102-075H49 | 3,2 |
|
| * Delivery times ex works in business days |
