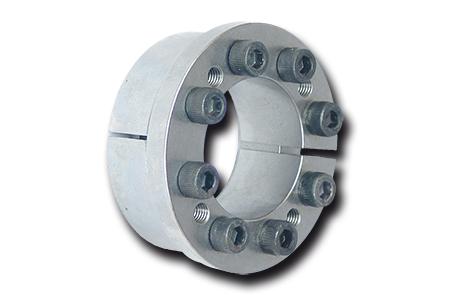

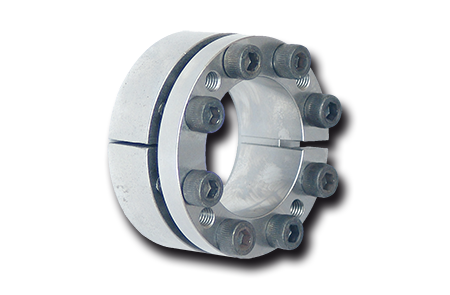

Cone Clamping Elements RLK 133 TC
-
-
centres the hub to the shaft
Premium quality with double slotFeatures
- Centres the shaft to the hub. Double slot for high centering accuracy.
- Can be assembled multiple times
- Highest transmissible torque
- Short axial width
- No axial displacement between hub and shaft during clamping procedure due to fixed backstop point
- Highest machining quality
- Transmissible torque of 19 500 Nm up to 567 500 Nm
- For shaft diameters between 130 mm and 520 mm
Webshop:
| Product name | Article number |
Weight [mm] | Delivery time* |
For customers in Germany Price/piece in € for orders of at least |
|
|---|---|---|---|---|---|
| RLK 133 TC-130 x 180 | 4204-130301-TC0000 | 5,1 |
| ||
| RLK 133 TC-140 x 190 | 4204-140301-TC0000 | 5,3 |
| ||
| RLK 133 TC-150 x 200 | 4204-150301-TC0000 | 5,6 |
| ||
| RLK 133 TC-160 x 210 | 4204-160301-TC0000 | 6,0 |
| ||
| RLK 133 TC-170 x 225 | 4204-170301-TC0000 | 8,2 |
| ||
| RLK 133 TC-180 x 235 | 4204-180301-TC0000 | 8,6 |
| ||
| RLK 133 TC-190 x 250 | 4204-190301-TC0000 | 10,0 |
| ||
| RLK 133 TC-200 x 260 | 4204-200301-TC0000 | 10,4 |
| ||
| RLK 133 TC-220 x 285 | 4204-220301-TC0000 | 13,9 |
| ||
| RLK 133 TC-240 x 305 | 4204-240301-TC0000 | 14,8 |
| ||
| RLK 133 TC-260 x 325 | 4204-260301-TC0000 | 16,1 |
| ||
| RLK 133 TC-280 x 355 | 4204-280301-TC0000 | 23,6 |
| ||
| RLK 133 TC-300 x 375 | 4204-300301-TC0000 | 25,7 |
| ||
| RLK 133 TC-320 x 405 | 4204-320301-TC0000 | 36,1 |
| ||
| RLK 133 TC-340 x 425 | 4204-340301-TC0000 | 38,3 |
| ||
| RLK 133 TC-360 x 455 | 4204-360301-TC0000 | 52,5 |
| ||
| RLK 133 TC-380 x 475 | 4204-380301-TC0000 | 55,0 |
| ||
| RLK 133 TC-400 x 495 | 4204-400301-TC0000 | 60,3 |
| ||
| RLK 133 TC-420 x 515 | 4204-420301-TC0000 | 62,9 |
| ||
| RLK 133 TC-440 x 535 | 4204-440301-TC0000 | 65,6 |
| ||
| RLK 133 TC-460 x 555 | 4204-460301-TC0000 | 68,3 |
| ||
| RLK 133 TC-480 x 575 | 4204-480301-TC0000 | 71,0 |
| ||
| RLK 133 TC-500 x 595 | 4204-500301-TC0000 | 73,7 |
| ||
| RLK 133 TC-520 x 615 | 4204-520301-TC0000 | 75,9 |
|
| * Delivery times ex works in business days |
